Brand: vendor-unknown
Part #: 200-1006-A

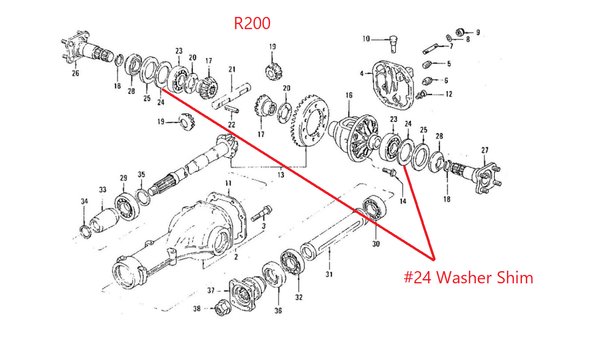

New OEM genuine Nissan rear differential shim. These shims will fit the R200 diff. These shims are used on each side of the ring gear carrier to set the pinion lash. Sold as single shim by thickness. These shims are 85mm O.D. and 70mm I.D. #24 in picture.
Thickness:
A= 2mm
B= 2.05mm
C= 2.10mm
D= 2.15mm
E= 2.20mm
F= 2.25mm
G=2.30mm
H= 2.35mm
I= 2.40mm
J= 2.45mm
K= 2.50mm
L= 2.55mm
M= 2.6mm
*See other listing for thrust washer #20 in picture. PT# 200-1231A
